ADVANCED PROBE CARD ANALYZER SOLUTIONS

Modern Probe Card Metrology for Today’s and Tomorrow’s Test Requirements

Upgrade Existing Platforms, Expand Capabilities or Configure a Custom Analyzer Solution

BE Precision Technology provides probe card analyzer solutions ranging from upgrading of installed legacy platforms to dedicated analyzer configurations and customer-specific metrology systems.

Existing analyzers can be upgraded with renewed electronics, optics and software while expanding channel capacity, mechanical capability and probe-card or motherboard interfaces. This helps prepare proven platforms for higher channel counts, larger and heavier boards, more demanding stage requirements and advanced probe technologies.

Customized configurations can be developed around the customer’s probe-card architecture, motherboard dimensions and interface, required channel capacity, mechanical requirements and measurement functionality rather than forcing the application into a fixed standard platform. The objective is to preserve valuable existing investments while creating a modern, expandable and future-ready probe card metrology solution.

LEGACY ANALYZER MODERNIZATION

Upgrade Proven Analyzer Platforms for New Metrology Requirements

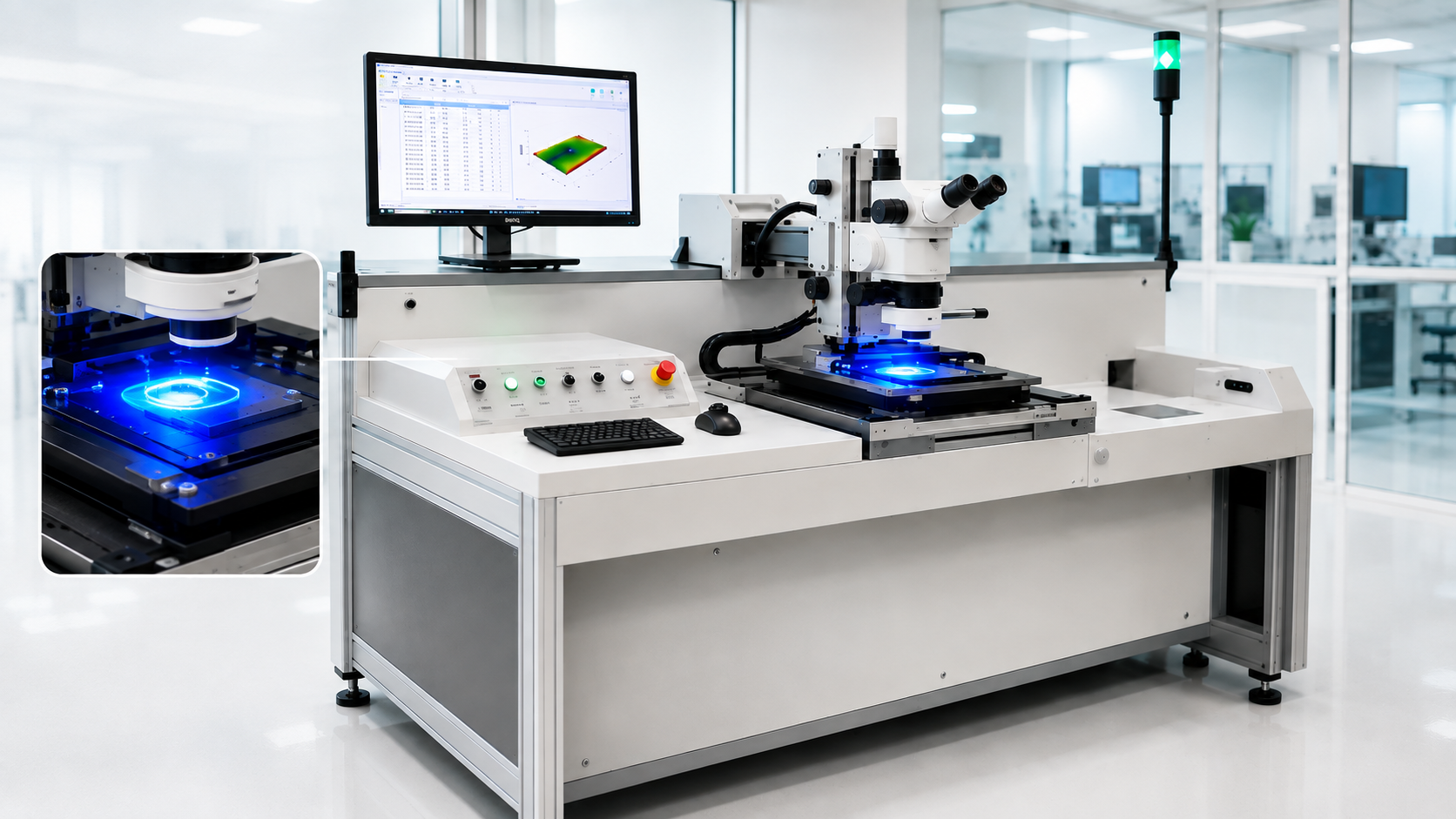

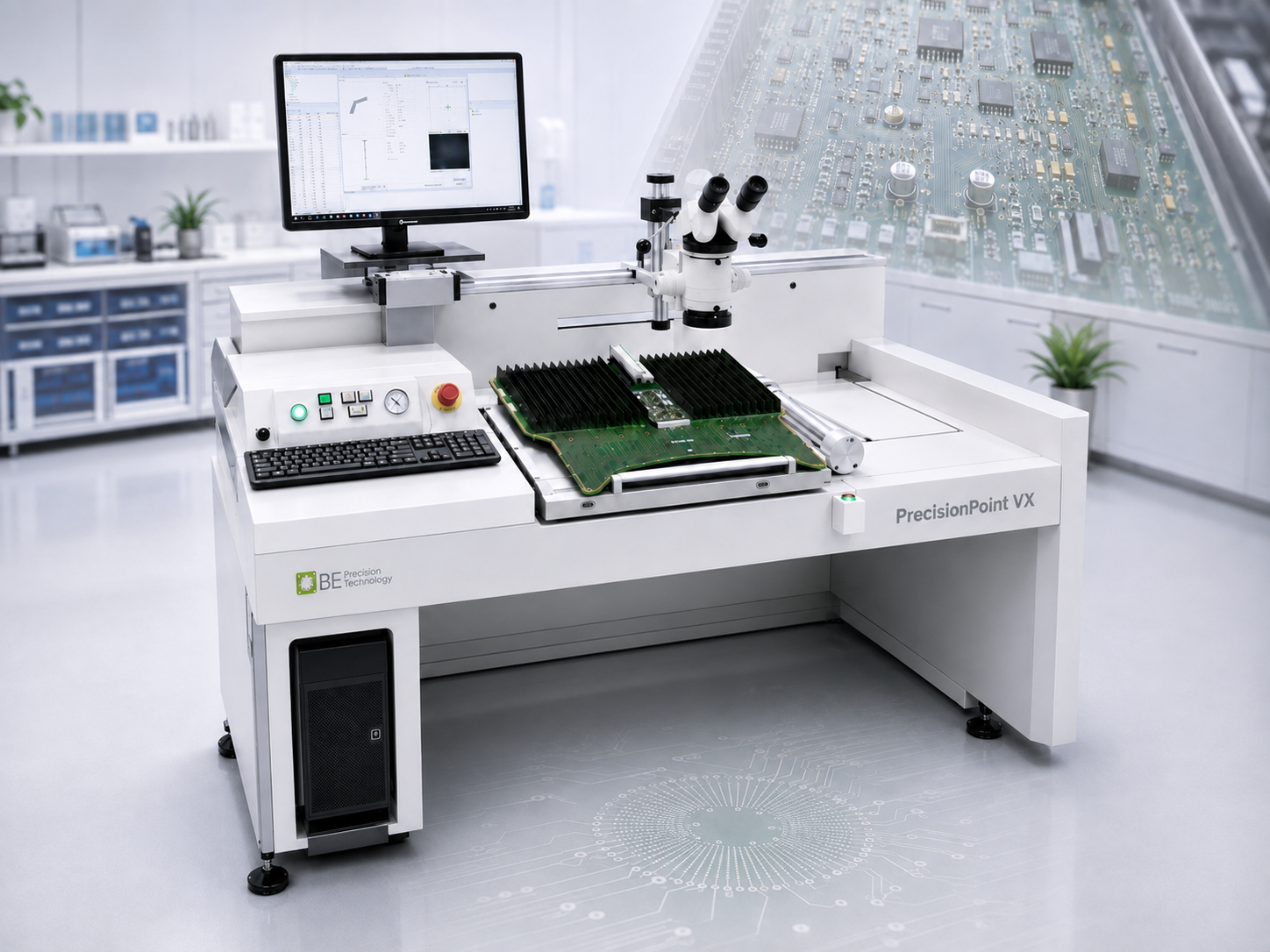

BE Precision Technology modernization programs use the existing analyzer frame as the mechanical foundation while renewing the core functional elements of the system. Stages, rails, optics, electronics and control components can be replaced, meaning that even a no longer fully operational legacy analyzer can provide the basis for a new metrology platform.

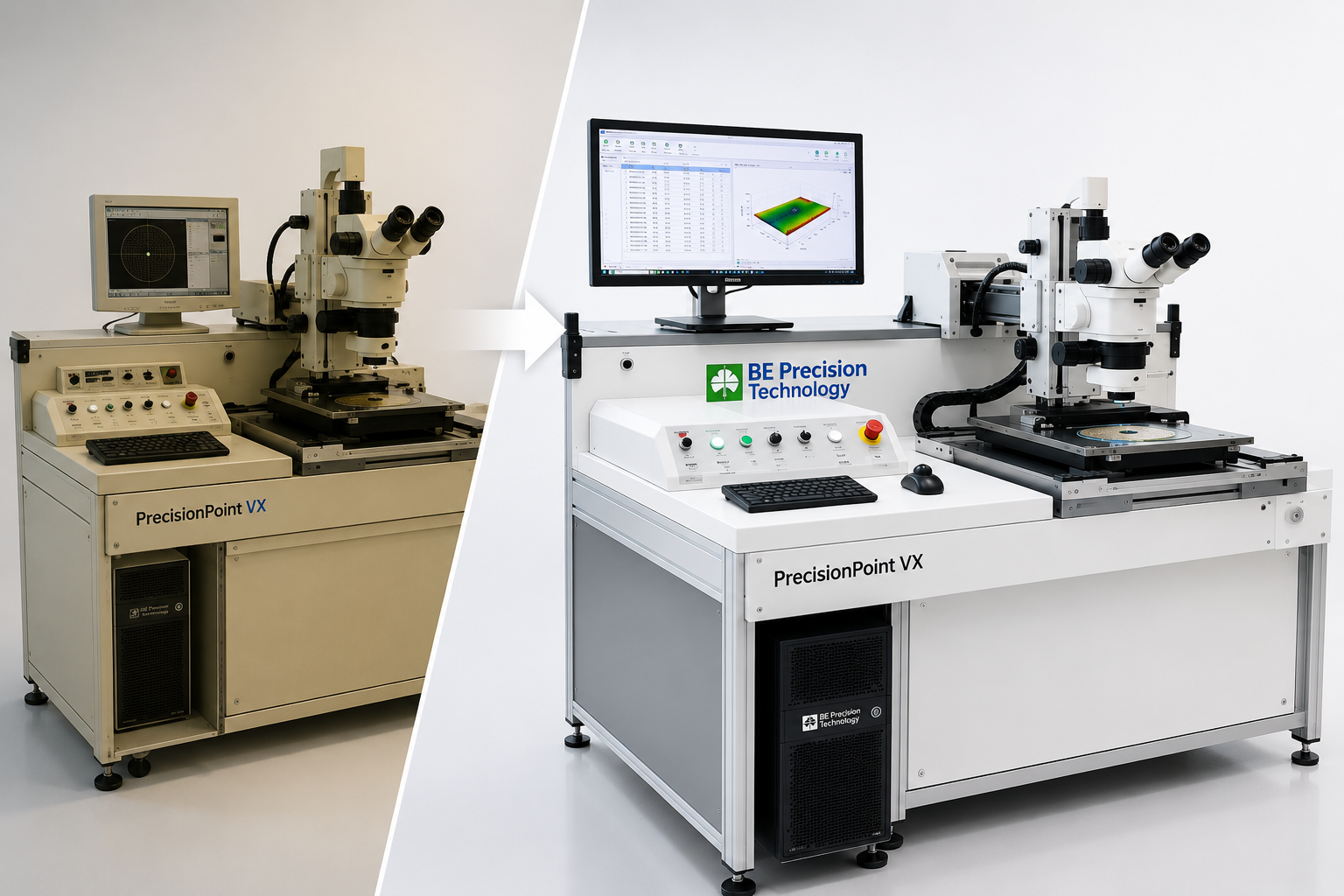

The rebuilt system can achieve VX4-class performance or beyond, while adding modern optics, software, diagnostics and significantly expanded channel capability.

Mechanical and electrical configurations can also be adapted for larger and heavier probe cards and motherboards, stronger stage requirements, direct docking and future channel expansion. The result is not simply a refurbished analyzer, but a modern, expandable platform prepared for future probe-card technologies.

DEDICATED ANALYZER PLATFORMS

Manager & Supervisor Platforms for Advanced Probe Card Metrology

BE Precision Technology provides dedicated probe card analyzer platforms for verification, diagnostics and advanced metrology across a wide range of probe card technologies and applications.

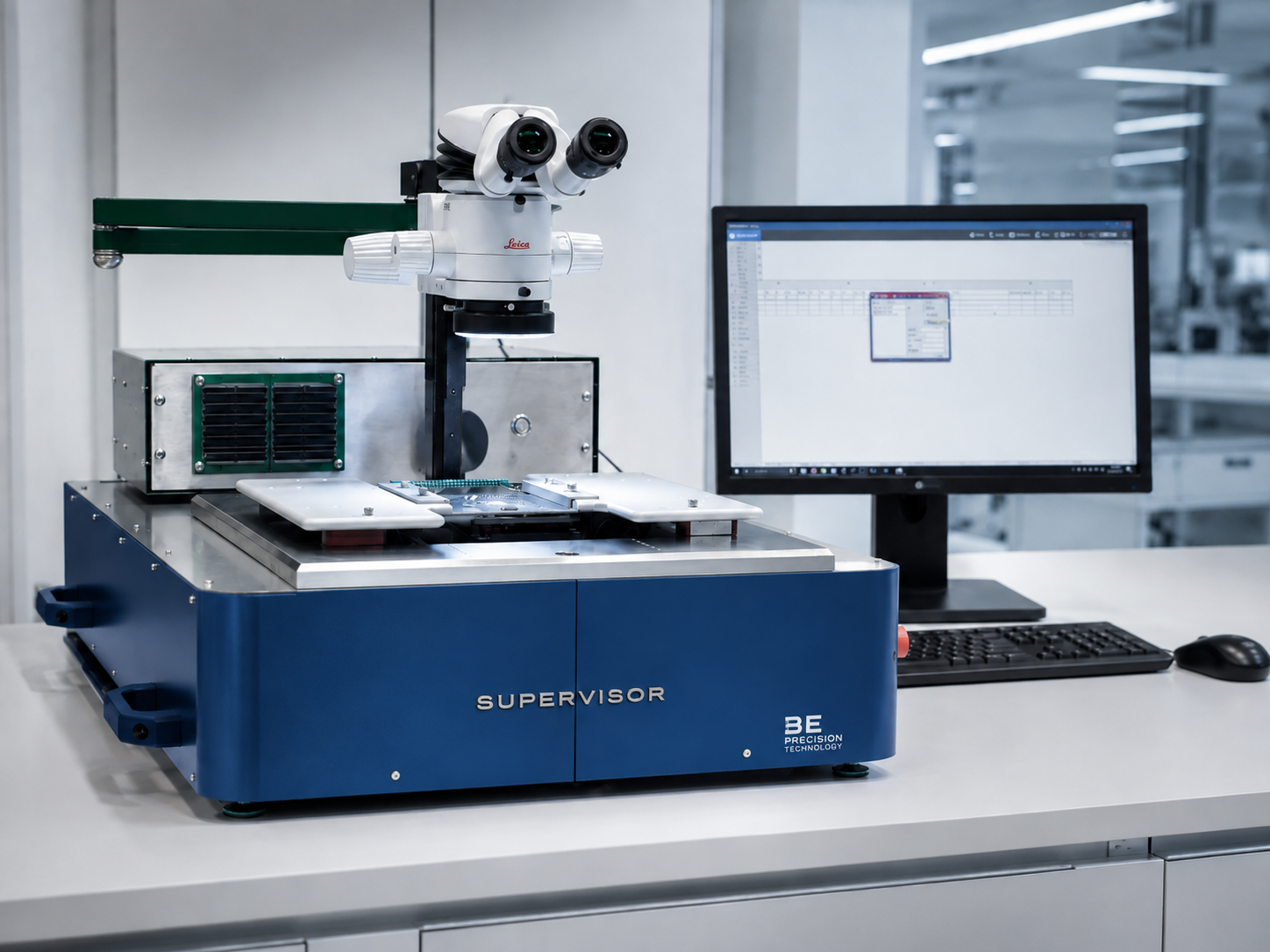

Supervisor systems combine automated physical and electrical verification, including probe alignment, planarity, contact force, contact resistance and leakage measurements, providing a structured view of probe-card condition and readiness for test.

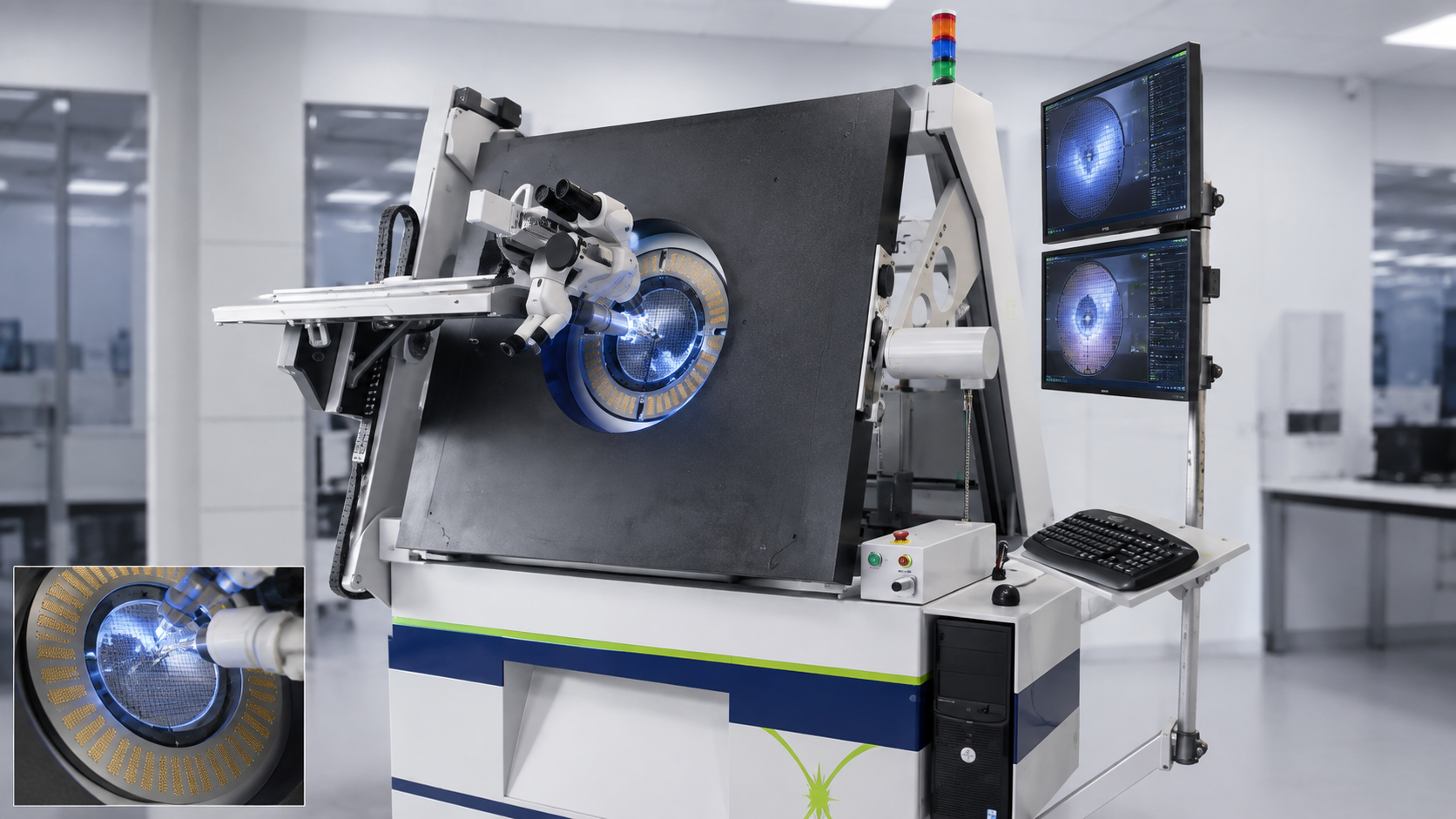

For more demanding applications, Manager platforms extend the concept toward larger probe-card formats, higher channel capability and advanced mechanical inspection. Manager V adds complete 3D probe-head metrology, sub-micron topography and scalable electrical validation to reveal mechanical conditions that conventional XYZ and electrical testing alone cannot fully characterize.

CUSTOM EXPANSION & FUTURE-READY ENGINEERING

Engineering Analyzer Platforms Beyond Standard Configurations

BE Precision Technology analyzer platforms can be adapted beyond standard configurations when probe-card architecture, motherboard dimensions or test requirements demand a customized solution.

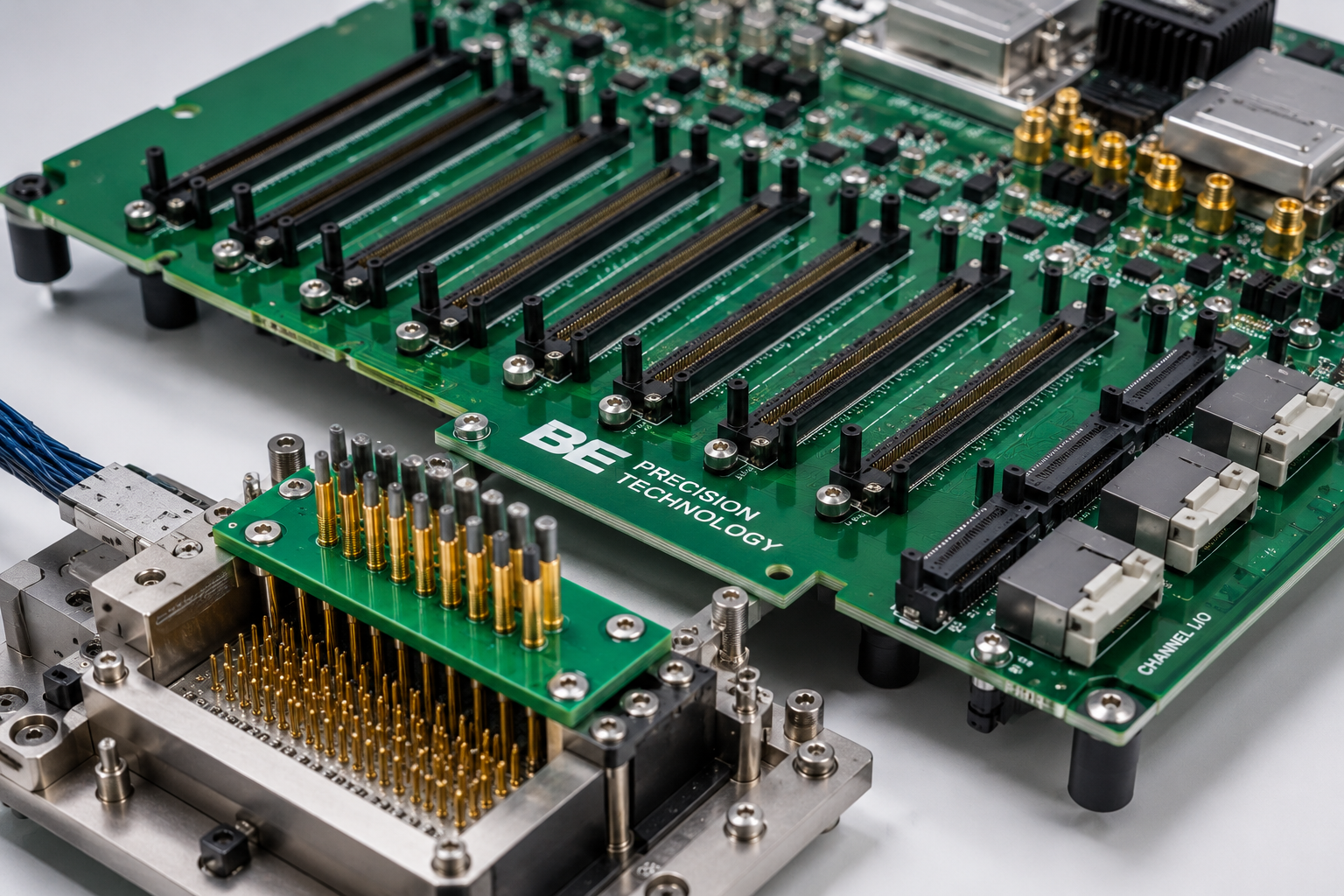

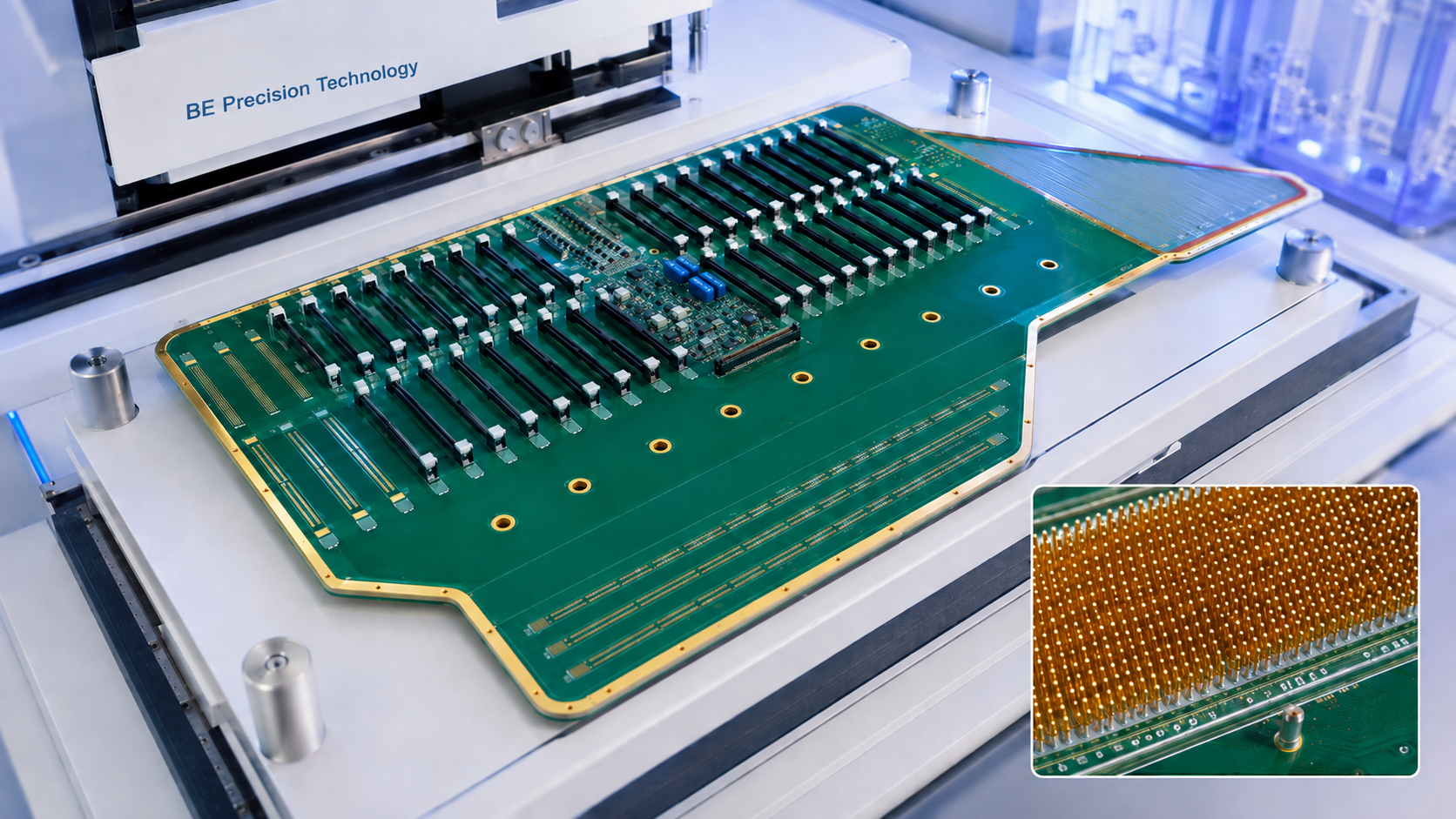

Channel capacity, motherboard and probe-card interfaces, stage capability and mechanical architecture can be engineered around the application. This includes solutions for larger and heavier hardware, direct docking, expanded channel architectures and specialized electrical or mechanical interfaces.

The objective is to provide an expandable metrology platform that can evolve with increasing channel counts, advanced MEMS, vertical and cantilever probe technologies, and future semiconductor test requirements.
