MANUAL PROBE STATIONS
Analytical Probe Station Platforms
Manual probe stations for samples, devices and wafers, available in compact laboratory configurations as well as larger platforms with multiple micropositioners and microscope options.

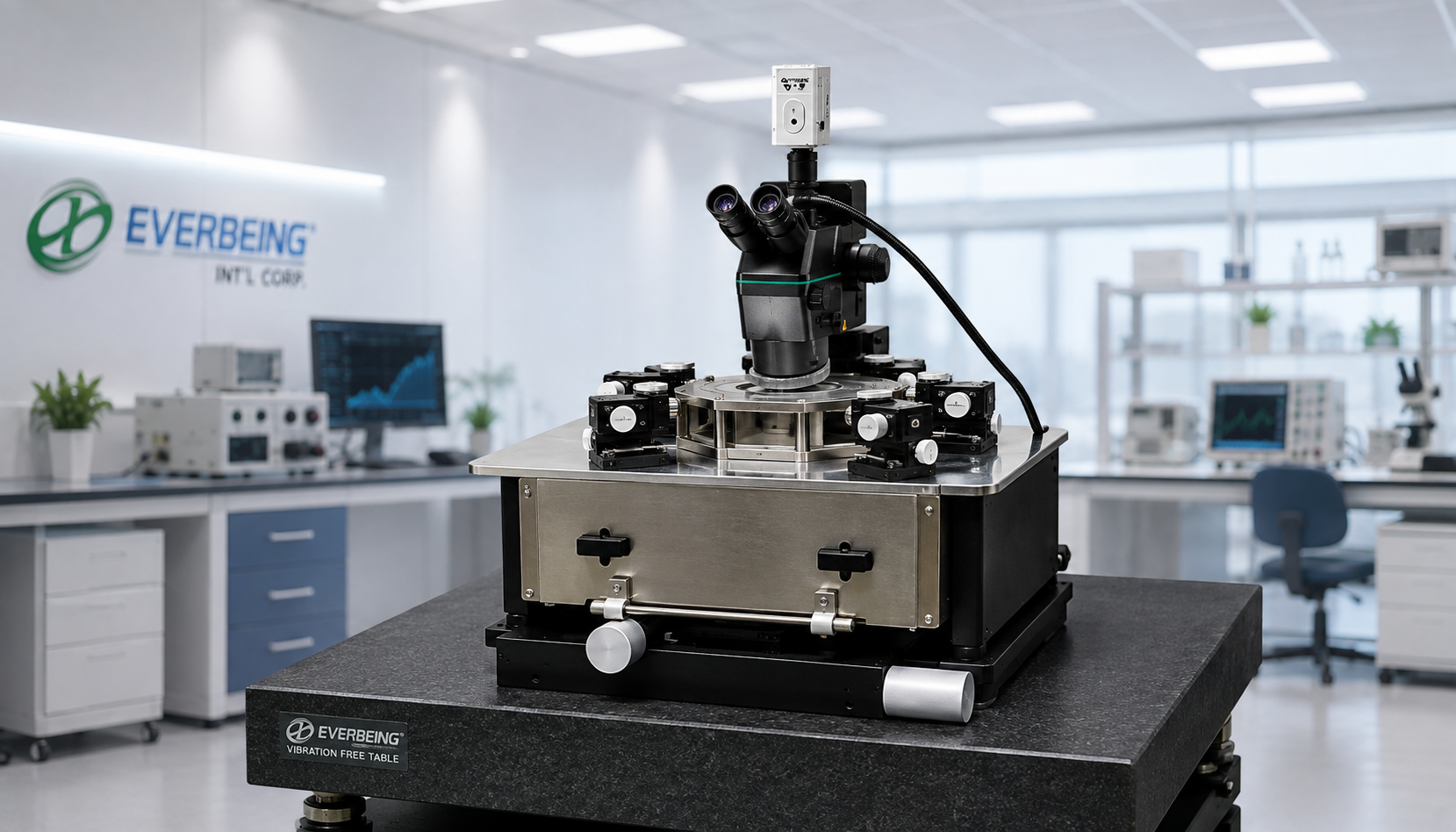

ANALYTICAL PROBE STATIONS
Analytical Probe Stations and Accessories
Flexible Manual Probing Solutions for Research, Teaching, Characterization and Device Development
Everbeing Int'l Corp. analytical probe stations provide versatile platforms for research, teaching, DC, RF, temperature-dependent and application-specific measurements. The portfolio includes manual probe stations, micropositioners, probe holders, probe tips and related accessories for semiconductor research, education and device characterization.
PROBE STATION PORTFOLIO
Flexible Platforms for Research and Teaching
Everbeing Int'l Corp. offers configurable manual probing platforms and accessories for semiconductor research, teaching laboratories, device characterization and application-specific measurement tasks.
POSITIONING AND CONTACTING
Micropositioners and Probe Accessories
A broad portfolio of precision micropositioners, probe holders, probe tips, cables and adapters supports flexible configuration for different samples, instruments and measurement requirements.
MEASUREMENT APPLICATIONS
DC, RF and Temperature-Dependent Probing
Application-specific configurations can support low-current DC measurements, RF probing, heated or cooled samples and other specialized characterization requirements.
SELECTED PROBE STATION CONFIGURATIONS
Probe Stations for Diverse Measurement Tasks
From compact laboratory systems to modular multi-positioner platforms and enclosed configurations, Everbeing probe stations can be tailored to the sample, measurement task, instrumentation and required operating conditions.
COMPACT LABORATORY SYSTEMS

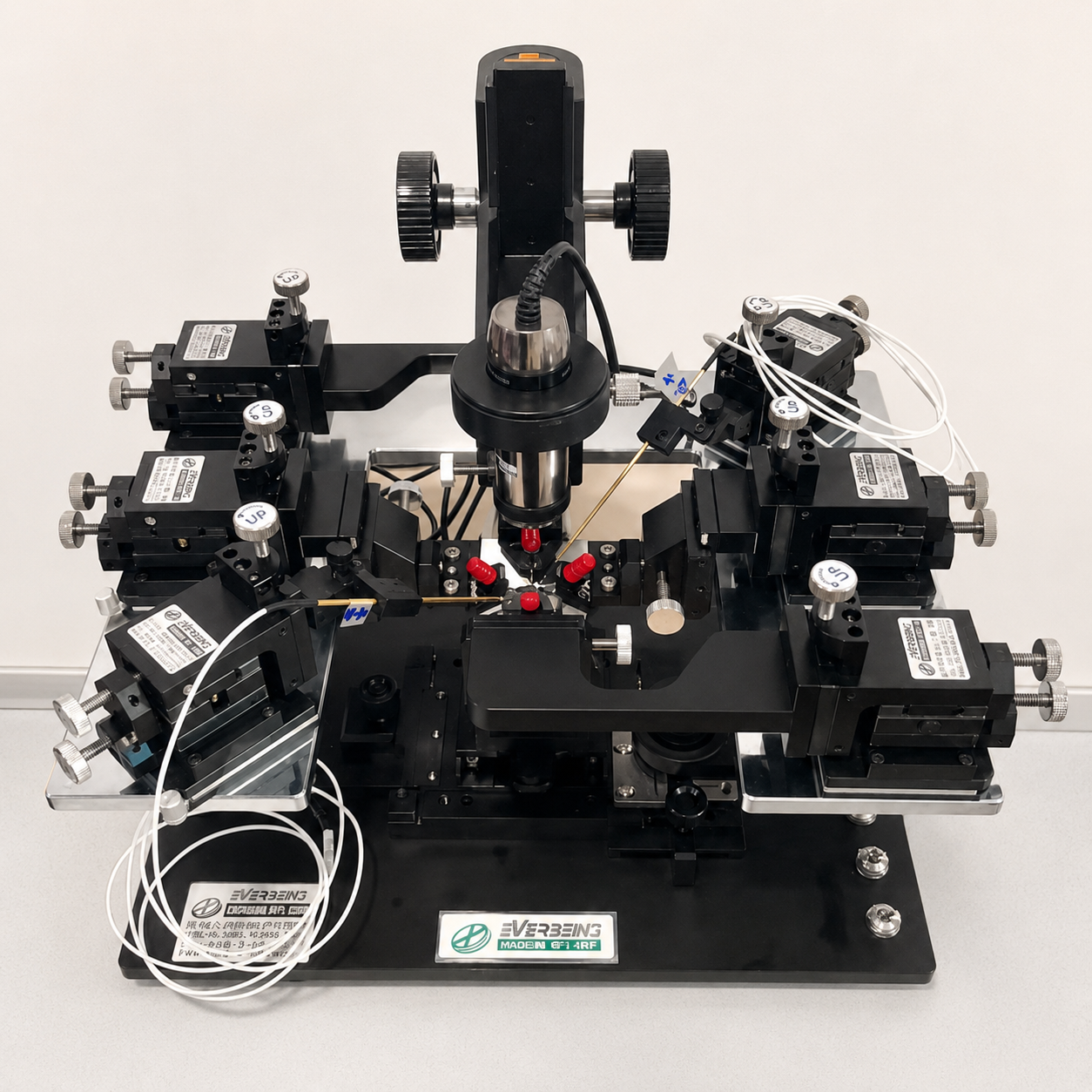

C2 Mini Compact Probe Station
Everbeing describes the C-2-RF Mini as the world’s smallest manual RF probe station. Its compact footprint makes it suitable for research and teaching laboratories, while flexible positioning and accessory options also allow configuration as the C2 Mini RF for radio-frequency device characterization.
PHOTONIC AND OPTOELECTRONIC PROBING

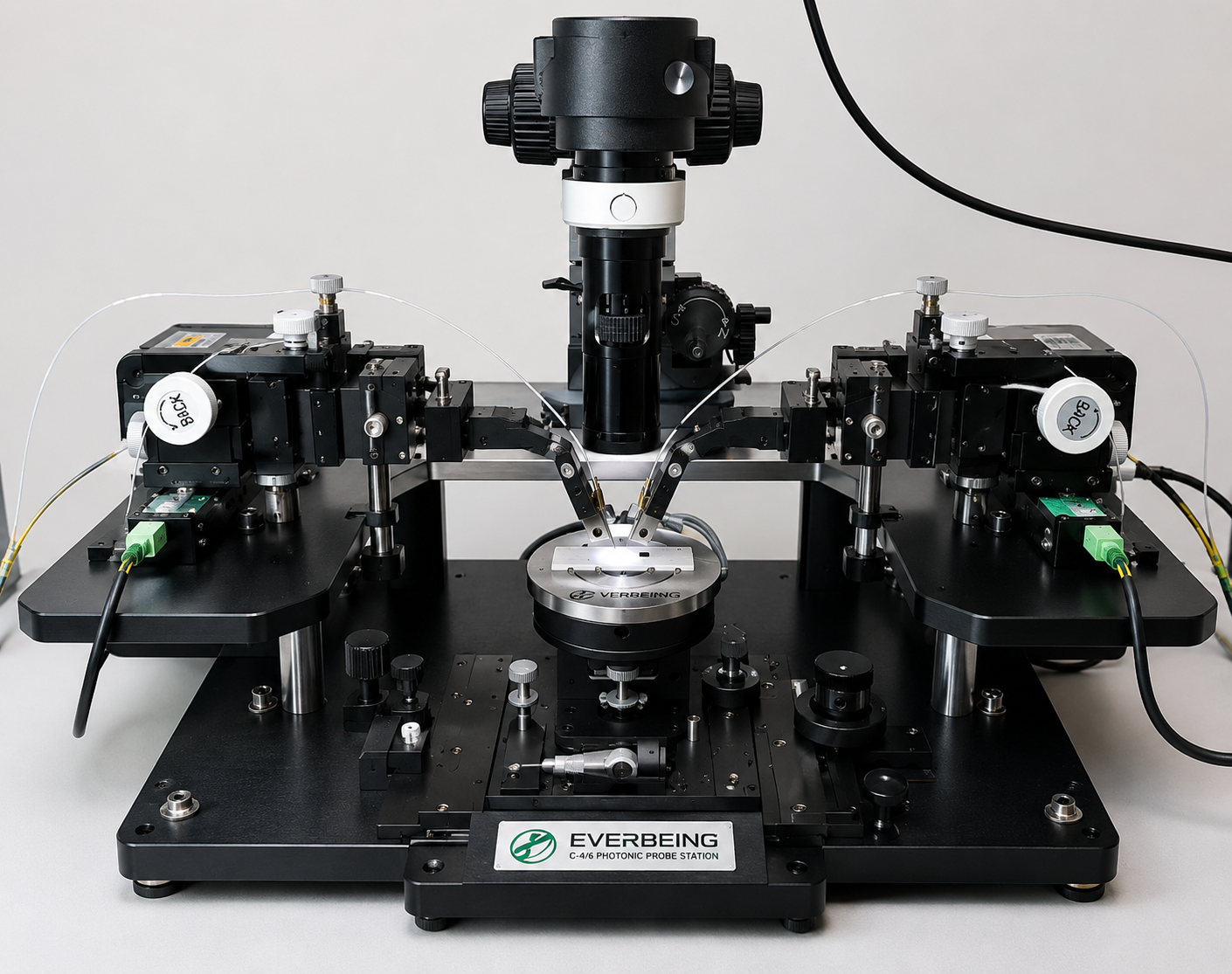

Everbeing C-4/6 Photonic Probe Station
The Everbeing C-4/6 Photonic Probe Station combines electrical probing with fibre-optic access for research and characterization of photonic, optoelectronic and semiconductor devices. The modular platform supports DC, RF and fibre-optic measurement configurations and can accommodate up to 12 micropositioners.
ADVANCED MILLIMETER-WAVE PROBING

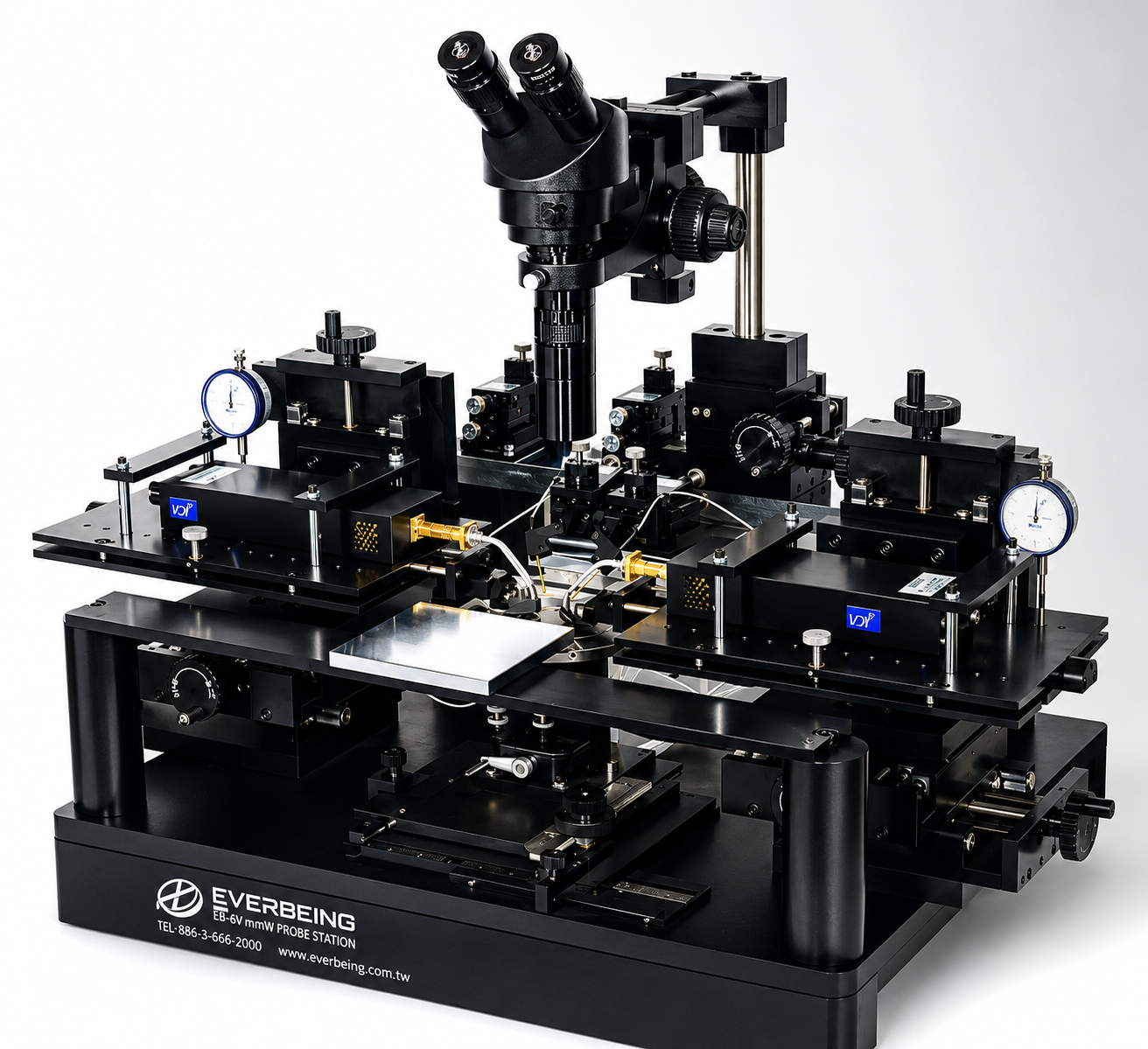

Everbeing EB-6V mmW Probe Station
The Everbeing EB-6V is a proven millimeter-wave probe station platform designed for precise integration with frequency extenders and modules from VDI, OML, Keysight and Rohde & Schwarz. Stable positioners, short waveguide paths and additional DC and RF contacting options support demanding high-frequency, differential mm-wave and mixed-signal measurements.
PRECISION POSITIONING AND CONTACTING
Micropositioners, Probe Holders and Probe Tips
Everbeing Int'l Corp. designs and manufactures precision micropositioners in-house and offers a coordinated portfolio of probe holders and probe tips for analytical probing applications. Its own machining facilities provide direct control over mechanical design, component quality and manufacturing precision.

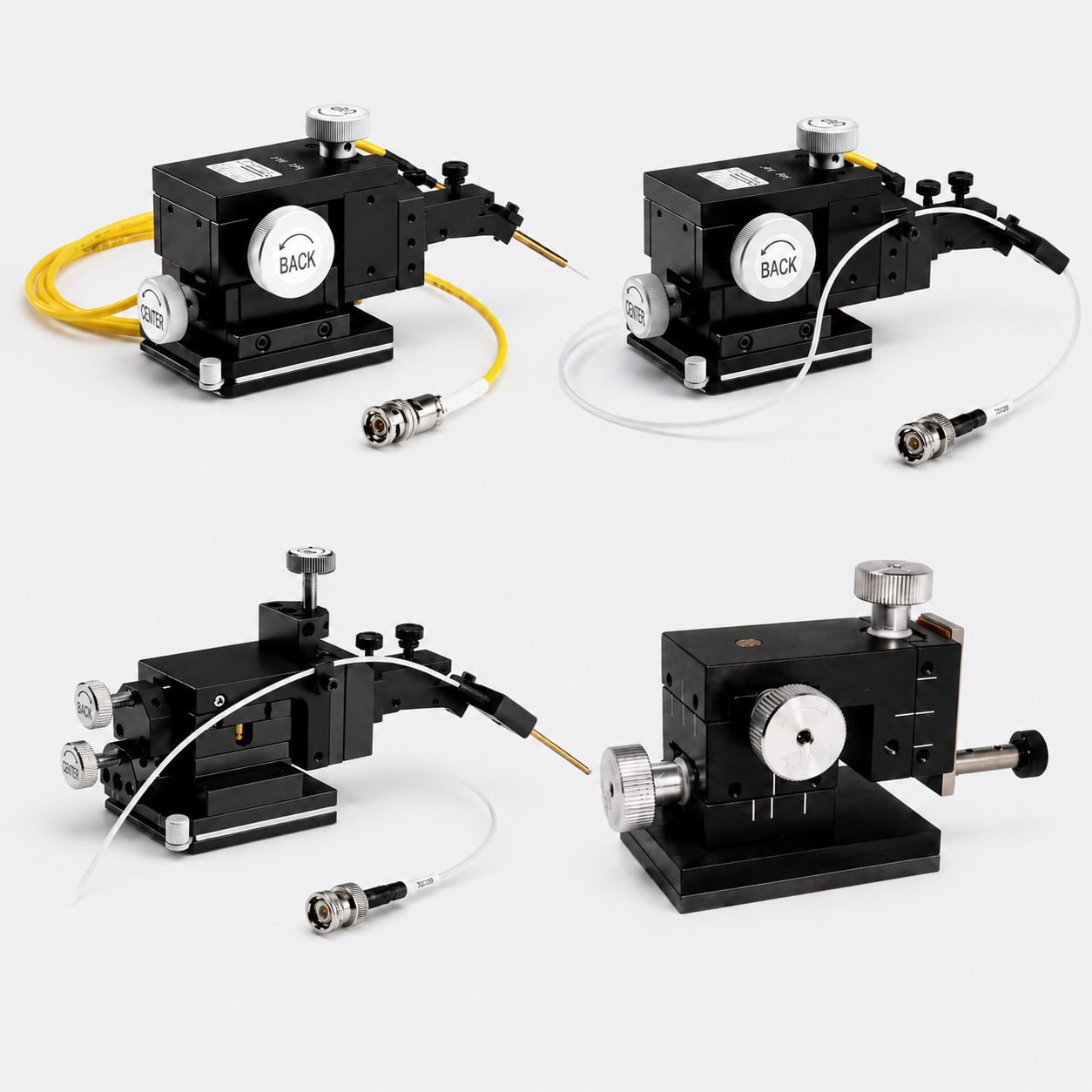

Everbeing Micropositioners
Everbeing develops and manufactures its precision micropositioners in-house, supported by extensive machining capabilities for consistent mechanical quality and application-specific variants. The portfolio includes models such as the EB-005E, EB-050 and EB-700, covering different resolutions, travel ranges, dimensions and load requirements. Depending on the model, mounting options include magnetic, vacuum and switchable magnet bases, with left- and right-hand configurations available for flexible station layouts. Dedicated accessories such as the FIBER-T extend selected micropositioners for fibre-optic alignment with additional roll and pitch adjustment.

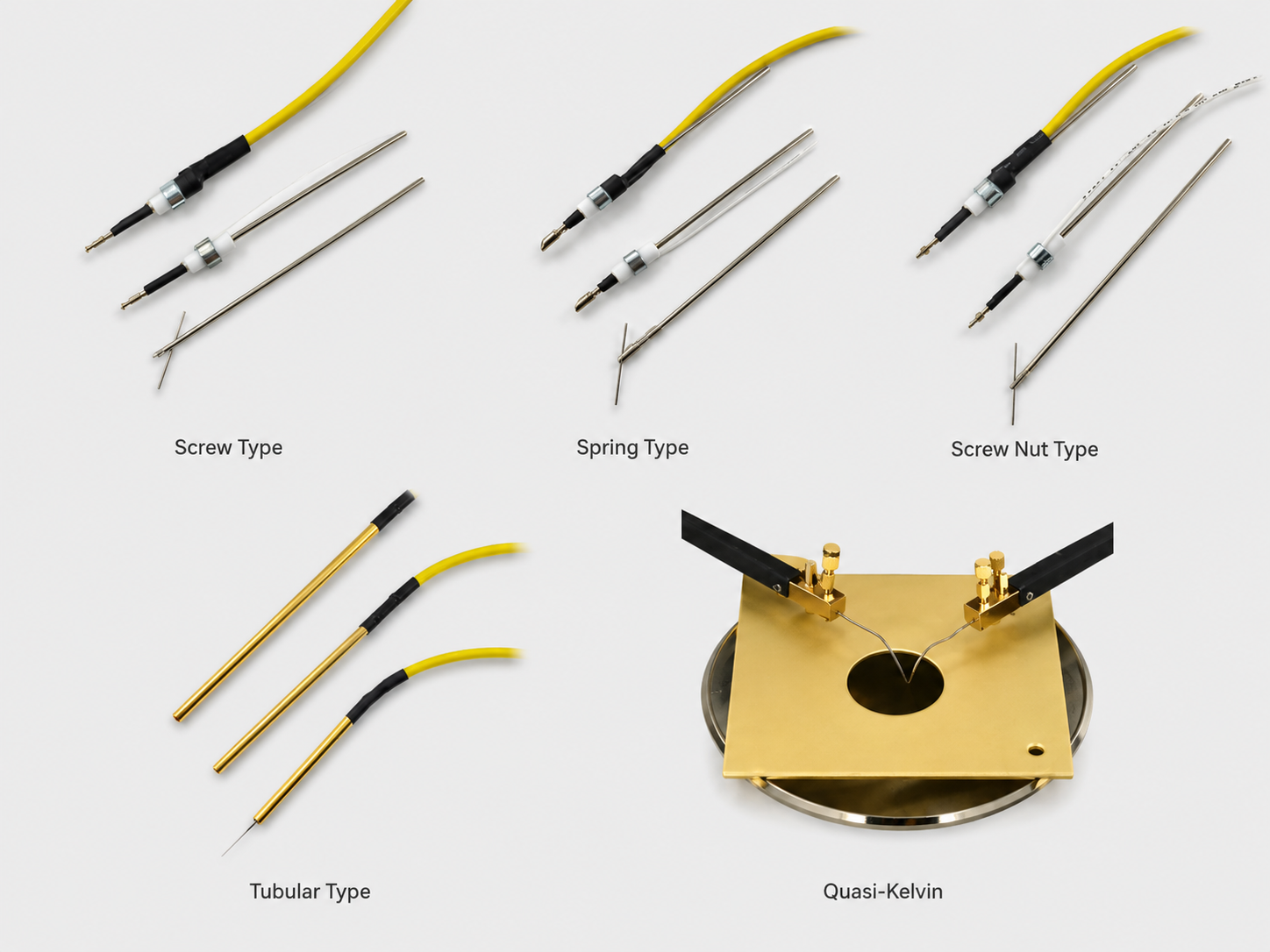

Probe Tip Holders
Everbeing tip holders are available in multiple mechanical and electrical configurations to support a wide range of probing applications. Available designs include screw type, spring type, screw-nut type, tubular type and quasi-Kelvin holders, with BNC, coaxial and triaxial variants for different voltage, current, leakage and frequency requirements. The holder selection can be coordinated with the probe tip style, micromanipulator, available working distance and desired approach geometry, enabling reliable setups for routine DC probing, low-current characterization and low-leakage measurements. Full holder details and specifications are available via the external brochure link.

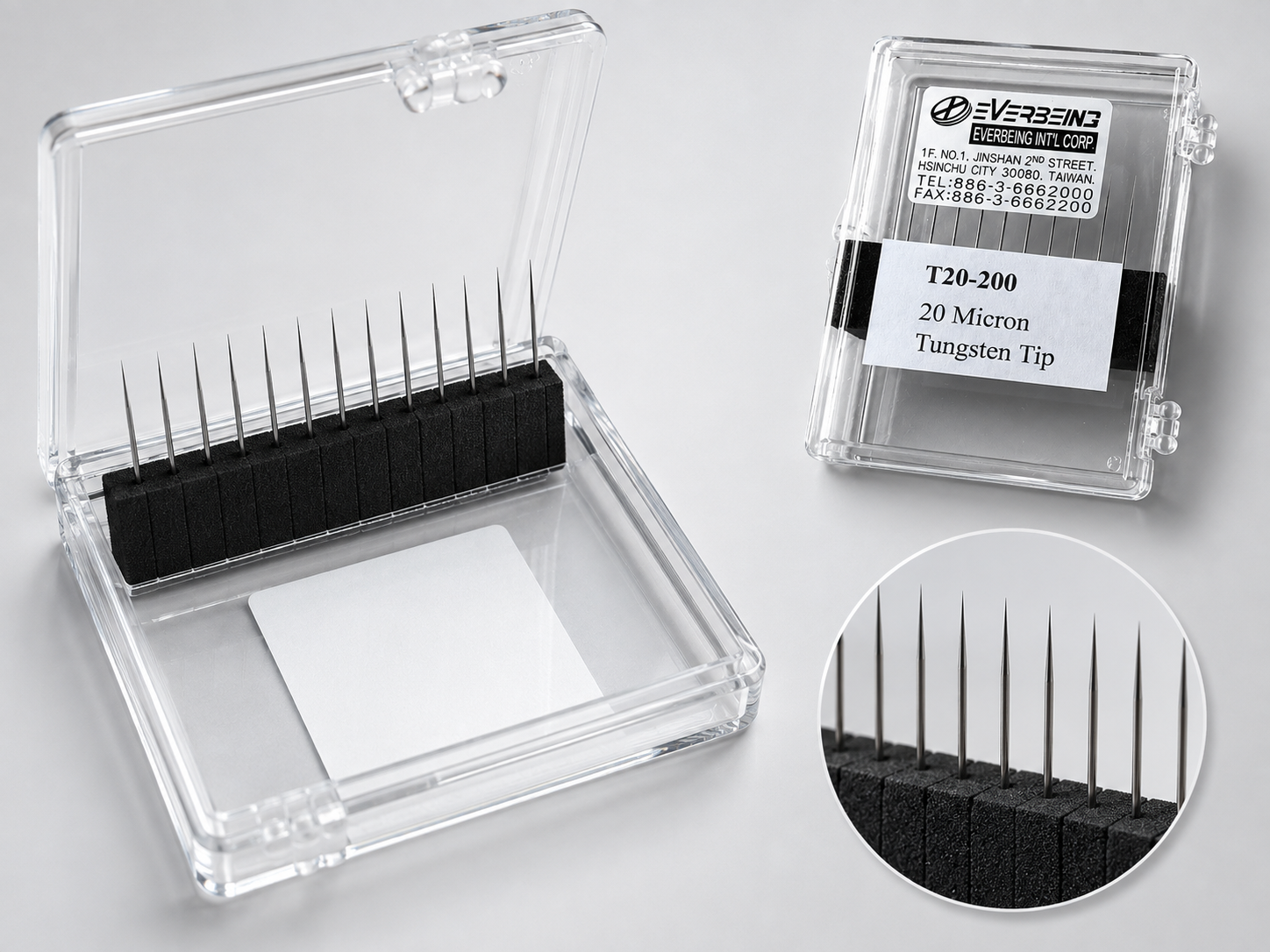

Probe Tips
Everbeing offers a broad range of probe tips in tungsten, gold-plated tungsten and beryllium copper (BeCu), including straight tapered, 45-degree bent, double-bent and Cat-Whisker geometries. Different tip diameters, shank sizes and lengths allow the probe tip to be selected according to contact-pad dimensions, sample topography, access angle and measurement requirements.
APPLICATION AND CONFIGURATION SUPPORT
From Measurement Task to Complete Probe Station Configuration
A reliable probe-station setup requires more than selecting a platform. Sample geometry, contacting method, instrumentation, working distance, temperature range and future expansion options are reviewed together before the final configuration is released. Where useful, the customer’s exact requirements can be discussed in online meetings together with Everbeing Int'l Corp. Application and Sales Engineering. Based on this joint review, a tailored probe-station configuration is developed for the specific measurement task and laboratory environment.
REQUIREMENTS REVIEW
Application Clarification
The measurement task, sample or wafer format, contact-pad geometry, required probe access and available laboratory instrumentation are reviewed to define the appropriate station platform and contacting concept. Where required, these details are clarified jointly with the customer and Everbeing Application and Sales Engineering in an online meeting.
SYSTEM DESIGN
Configuration Development
Probe station, chuck, microscope, micropositioners, probe tip holders, probe tips and related accessories are coordinated as one system. Based on the joint technical review, a tailored configuration is developed for the specific measurement task, laboratory environment and potential future expansion.
ADDITIONAL CROSS-CHECK
AI-Assisted Configuration Verification
AI-assisted verification is used as an additional cross-check for completeness, interface compatibility and consistency of the proposed configuration. Final technical approval remains with Everbeing and BE Precision Technology (BEPT).
EUROPEAN SALES AND PROJECT SUPPORT
Working with HG Semiconductor Solutions and
BE Precision Technology
HG Semiconductor Solutions supports the European Everbeing business under the commercial and operational framework of BE Precision Technology . Customer communication, application clarification and project coordination are handled by Hanns-Georg Ochsenkühn as an independent sales consultant acting on behalf of
BE Precision Technology.
BE Precision Technology.
European contact:
Hanns-Georg Ochsenkühn
hg.ochsenkuehn@probecardtester.com
EUROPEAN CUSTOMER SUPPORT
HG Semiconductor Solutions
HG Semiconductor Solutions supports European customers with initial application clarification, technical coordination, configuration development, quotation follow-up and communication throughout the project.
EXPERIENCE AND CONTINUITY
Long-Standing Everbeing Experience
Hanns-Georg Ochsenkühn previously managed the European distribution and support of Everbeing products through A
COMMERCIAL HANDLING
Business through BE Precision Technology (BEPT)
Commercial quotations, purchase orders, invoicing and project execution are handled through BE Precision Technology, operated by Tech Advisors B.V. in the Netherlands.
